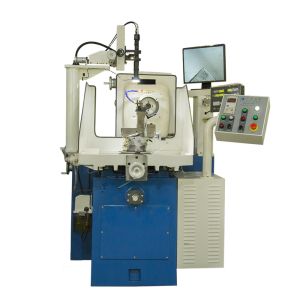

ZT-90CNC/V Cut Diamond Tools PCD Grinder Machine Fully Automatic
ZT-90CNC/V Grinding Machine for Blade Tools
Features
1.All cast machine body and cast accessories are average 24 months
natural ageing which it’s high rigidity and stability.
2. Grinding head is a up-down spindle and angle adjustable,
featuring in high running speed high precision.
3. Pneumatic systems imported from SMC of Japan , fast infeed and
out feed worktable with flexible grinding .
4. All of the CNC control system is self -R&D software,
embedded CCD and measurement system, all the sensors, servo control
are closed control system to make sure it’s accuracy and stability.
5. Use a new visual Technology, online measurements, auto grinding
at the whole process.
And parameters auto memory , error code alarm, more productivity
and efficient.
6. Only one time fitting, then grinding by auto from first to last
tip with higher efficient and consistency
7. Machine with a high precision CNC division flange, Precision
recognition .
TECHNICAL PARAMETERS
ZT-90V Grinder is a special equipment which focus on grinding
diamond V-Cut tools and some saw blades. It’s also can grind
carbide tools also. This models is improved on original ZT-90
diamond grinding machine with CNC control axis.
One time fitting can finish grinding work by automatically which
it’s high precision. Auto infeed and out feed, automatically scale
division and measurements. The software support parameter setting
record and can turn to next tip by automatic also .
It’s error code recognize by software. This model is widely used
for PCB board V-Cut tool, wooden blades and other diamond or
carbide tools of this kind
ZT-90CNC/V Prameter Specification
Image system resolution | 1280*960 |
Image system pixel | 3.75μm*3.75μm |
Optical lens object distance | 300mm |
Magnification | 45-250 times |
CNC division axis resolution | 8arcmin |
CNC infeed axis resolution | 0.001mm |
CNC Y axis resolution | 0.01° |
Grinding pressure | 0-450N(Adjustable) |
Grinding wheel speed | 0-4200RPM(50HZ) |
Grinding wheel size | 125D×40H×40T |
Grinding wheel oscillation frequency | 0-45/min(Adjustable) |
Grinding wheel oscillation distance | 0-40mm(Adjustable) |
Grinding wheel height adjustment | 140mm |
Grinding wheel traveling range | 170mm |
Grinding wheel inclination | -13°—+24° |
Cross table swiveling angle | 0-270° |
Readout of linear gratings | 0.001mm |
Spindle power | 2.2KW |
Machine Size | 1200(L) ×1168(H) ×1530(W)mm |
Working Table
Grinding Samples
Factory View
